ip

Developer Guide

Design

Architecture

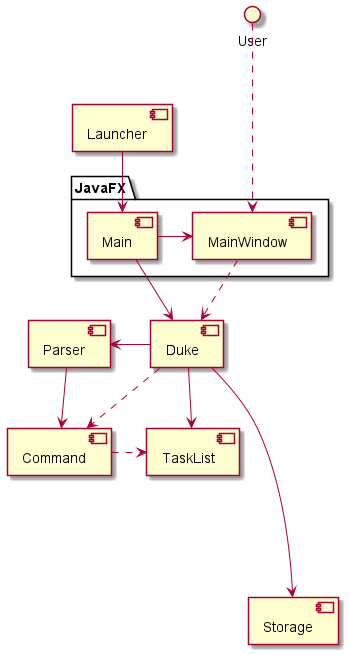

The Architecture Diagram above explains the high-level design of the app.

• Launcher: App entry point.
• JavaFX Main: Hold instance of Duke.
• JavaFX MainWindow:
  • Parent GUI of app.
  • Accept user input and trigger Duke logic.
• Duke: Main control of back-end logic.
• Parser: Make sense of user input.
• Command: Execute instruction.
• TaskList: Hold app data in memory.
• Storage: Read data from and write data to hard disk.



Interaction Between Architecture Components

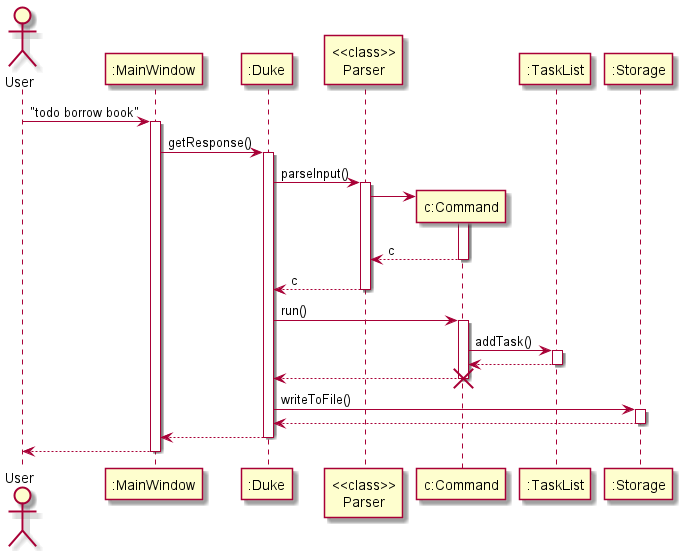

The Sequence Diagram below shows how the components interact with each other for scenario when the user issues command todo borrow book.

Note: The lifeline for c:Command should end at destroy marker (X), but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

Command Component

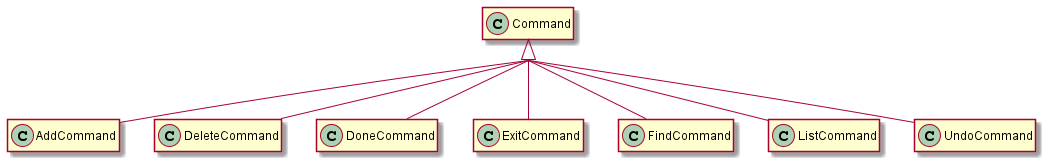

Commands are implemented via an abstract Command class, with concrete Commands inheriting from it.

CommandResult

The run() function of abstract Command class returns a CommandResult data type, which contains below 2 variables.

• Feedback String to be displayed back to the user.
• IsExit Boolean to indicate if the app should exit.



CommandDataHistory

The undo command is implemented with help of a CommandDataHistory class.

• For keeping of a copy of TaskList before every Command execution.
• Appending is implemented with iteration of all existing Task, copying and re-creating new Task Object.




Appendix: Requirements

User Stories

As a	I want to	So that
forgetful user	add task	I can action on them later
user	see all tasks	I can plan my execution strategy
user	mask a task as done	I am more productive
user	delete a task	I can declutter task that are no longer valid
user	filter tasks by keyword	I can quickly find a task
new user	undo previous command	I can quickly rollback a mistake

Non-Functional Requirements

1. Should work on Windows, Mac and Ubuntu with Java 11 installed.
2. Each command should execute within 5 seconds.
3. Should be able to hold up to 1000 tasks without noticeable degrade in performance.
